DONGWOO 自動洗呔機型號

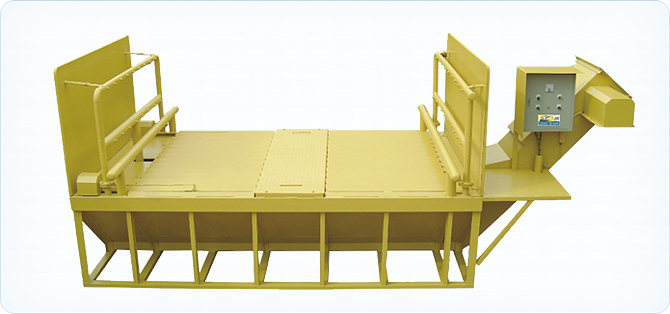

| Roller Type – DW-SR08 | Operation Method | Full automatic operation by mechanical sensor |
 |
Application Vehicle | All types of dump truck (Applicable width of Truck: up to 2800mm) |
| Spraying Water Pressure | 3 ~ 4kg/cm3 | |
| Sludge Disposal Method | Elimination by sludge conveyor operation | |
| Time for Washing | 30 ~ 40sec | |
| Dimension of Equipment | 2240mm(W)x5340mm(L)x1000mm(H) | |
| Installation | Fix type | |
| Weight | 5,250Kg | |
| Water Requirement | About 3 litter per vehicle | |
| Power Consumption | 15.1KW | |
| Power Source | 3 Phase / 4W / 380/220V / 50H | |
| Suitable Job Site | Small Size |

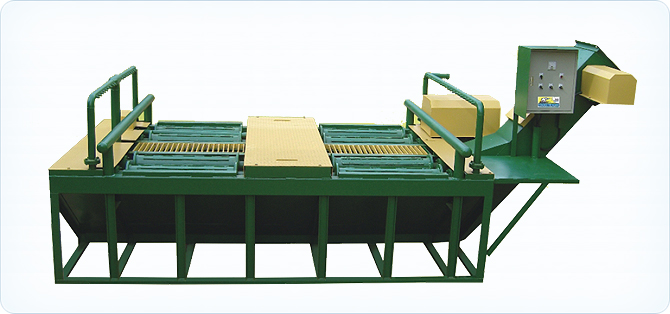

| Grating Type – DW-SG01 | Operation Method | Full automatic operation by mechanical sensor |
 |
Application Vehicle | All types of dump truck (Applicable width of Truck: up to 2500mm) |
| Spraying Water Pressure | 3 ~ 5kg/cm3 | |
| Sludge Disposal Method | Elimination by sludge conveyor operation | |
| Time for Washing | 15 ~ 30sec | |
| Dimension of Equipment | 2240mm(W)x5600mm(L)x2200mm(H) | |
| Installation | Fix type | |
| Weight | 4,500Kg | |
| Water Requirement | About 3 litter per vehicle | |
| Power Consumption | 15.8KW | |
| Power Source | 3 Phase / 4W / 380/220V / 50Hz | |
| Suitable Job Site | Small – Medium Size |

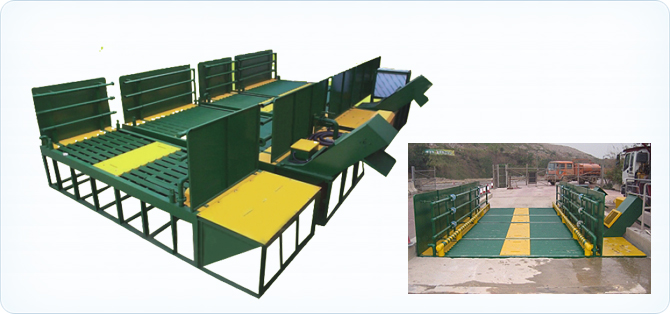

| Half-Truck Grating Type – DW-SG01D | Operation Method | Full automatic operation by mechanical sensor |
 |
Application Vehicle | All types of dump truck (Applicable width of Truck: up to 2500mm) |
| Spraying Water Pressure | 3 ~ 4kg/cm3 | |
| Sludge Disposal Method | Elimination by sludge conveyor operation | |
| Time for Washing | 15 ~ 20sec | |
| Dimension of Equipment | 4500mm(W)x5600mm(L)x2200mm(H) | |
| Installation | Fix type | |
| Weight | 9,100Kg | |
| Water Requirement | About 3 litter per vehicle | |
| Power Consumption | 32KW |
|
| Power Source | 3 Phase / 4W / 380/220V / 50Hz | |
| Suitable Job Site | Small – Medium Size |
| Full-Truck Grating Type – DW-SG01F | Operation Method | Full automatic operation by mechanical sensor |
|
Application Vehicle | All types of dump truck (Applicable width of Truck: up to 2500mm) |
| Spraying Water Pressure | 3 ~ 4kg/cm3 | |
| Sludge Disposal Method | Elimination by sludge conveyor operation | |
| Time for Washing | 5 ~ 15sec | |
| Dimension of Equipment | 7650mm(W)x5600mm(L)x2200mm(H) | |
| Installation | Fix type | |
| Weight | Approx. 13.650Kg | |
| Water Requirement | About 3 litter per vehicle | |
| Power Consumption | 32KW | |
| Power Source | 3 Phase / 4W / 380/220V / 50Hz | |
| Suitable Job Site | Large Size Barging Point & Landfill Area |

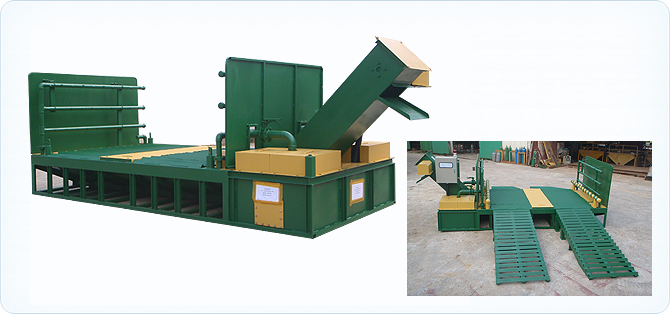

| Full-Truck Grating Type – DW-SG01M | Operation Method | Fully automatic operation by mechanical switch |
 |
Application Vehicle | All type of dump trucks (Car width : 2600mm Max.) |
| Spraying Water Pressure | 3 ~ 4kg/cm3 | |
| Sludge Disposal Method | Automatic disposal by scraper chain conveyor | |
| Time for Washing | 15 ~ 30sec | |
| Dimension of Equipment | 2220mmW x 4640mmL x 1820mmH (600mm +1220mm) |
|
| Pumps | 2 nos. of 7.5HP | |
| Weight | 3,000kg | |
| Water Requirement | About 3 litter per vehicle | |
| Conveyor motor | 32KW | |
| Power Source | 380V/220V 415V/220V 50Hz/60Hz 3Ph | |
| Steel ramps | One full set (4 pcs of ramps, total weight of ramps:1100kgs) |

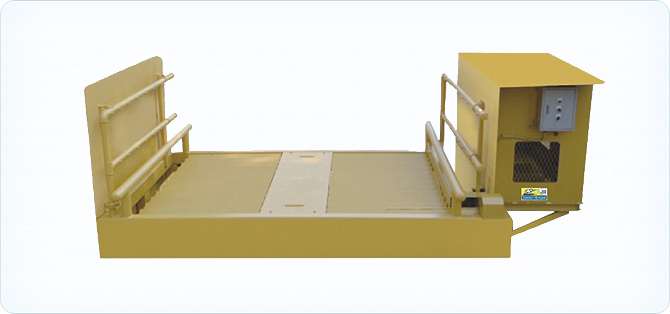

| No pad Grating type – DW-SG03 | Operation Method | Fully automatic operation by mechanical switch |
 |
Application Vehicle | All types of Dump Truck (Applicable width of Truck: up to 2500mm) |
| Spraying Water Pressure | 3 ~ 4kg/cm3 | |
| Sludge Disposal Method | Manual | |
| Time for Washing | 15 ~ 30 sec (MAX. 60 sec.) | |
| Dimension of Equipment | 2240mm(W)x4750mm(L)x400mm(H) | |
| Installation | Fix Type | |
| Weight | 2.100Kg | |
| Water Requirement | About 3 litter per vehicle | |
| Power Consumption | 12KW | |
| Power Source | 380V/220V 415V/220V 50Hz/60Hz 3Ph | |
| Suitable Job Site | Small Size |

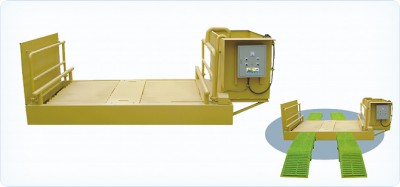

| No pad Grating – Sludge Disposal System – DW-SG03M |
Operation Method | Fully automatic operation by mechanical switch |
|
|
Application Vehicle | All types of Dump Truck (Applicable width of Truck: up to 2500mm) |
| Spraying Water Pressure | 3 ~ 4kg/cm3 | |
| Sludge Disposal Method | Semi-Automatic Sludge Elimination Method | |
| Time for Washing | 30 ~ 40sec | |
| Dimension of Equipment | 2240mm(W)x5350mm(L)x2270mm(H) | |
| Installation | Fix Type | |
| Weight | 5,250Kg | |
| Water Requirement | About 3 litter per vehicle | |
| Power Consumption | 19.5KW | |
| Power Source | 3 Phase / 4W / 380/220V / 50Hz | |
| Suitable Job Site | Small Size |

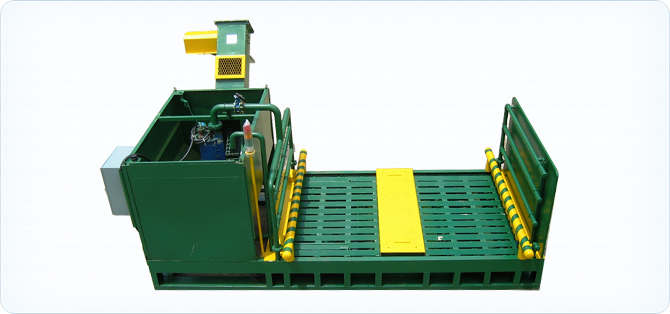

| No Pad Grating – Self-Powered System – DW-SPG03 |
System Dimension | (W)2200 × (L)4750 × (H)400 |
|
|
System Weight | 3,000kg |
| Applicable Vehicle | 25 ton vehicle | |
| Washing Time | 20~40sec | |
| Power Consumption | 3 ~ 5kw, 220V, 50Hz, single phase by self electricity generating |
|
| Operation Type | automatic washing by proximity S/W sensing | |
| Water Pressure | 3 ~ 4kg/cm3 | |
| Water Tank Volume | 4ton | |
| Sludge Disposal | manual | |
| Pump Capacity x q’ty | 2HP × 2 unit | |
| Mounted Generator Set | 10.5kw with gasoline engine |
